Neurology Lab 6 - Module 1 - Orbit - Bony Structure: Page 1 of 3

READINGS:

Gray's Anatomy for Students (Fourth Edition): Pages: 916-925

Tap on image to enlarge

Begin with the skull.

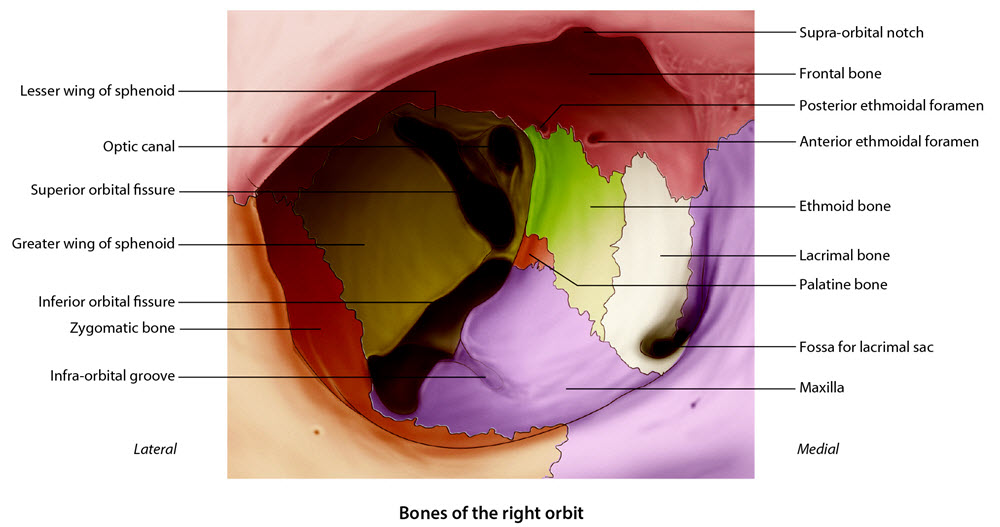

Focus on the right orbit. Using the Highlight tool, identify the following bones. Notice how the bones light up in Cross-Sections panels:

Frontal bone

Zygomatic bone

Sphenoid bone

Maxilla

Ethmoid bone

Lacrimal bone

	The palatine bone exists in this cadaver. How would you find it?
From the VHDissector toolbar: Tap on the Anatomy icon. Tap on Index (left side of the screen). Type the word palatine in the search box. Tap on the "starburst" beside the name of a structure to see it highlighted on the cadaver. Note that you may need to rotate the cadaver to see the highlighted area.
